GR1603 For Large Ground Surface Leveling

GR1603 For Large Ground Surface Leveling

Μούβ: 1 μονάδα
τιμή: USD2500~USD50000
Τυπική συσκευασία: Τυπική συσκευασία εξαγωγής
Περίοδος παράδοσης: 3-5 εβδομάδες
μέθοδος πληρωμής: D/p, d/a, l/c, t/t
Ικανότητα εφοδιασμού: 100 μονάδες +3 εβδομάδες
Λεπτομέρειες
Τόπος καταγωγής
ΚΙΝΑ
Μάρκα
XCMG
Πιστοποίηση
ISO9001
Αριθμό μοντέλου
GR2403
Μοντέλο:
GR2403
Ιπποδύναμη:
215-270
Βάρος μηχανών (κλ):
17000
Διάστημα λεπίδας x ύψος χορδής (mm):
3965×610
Μοντέλο κινητήρα:
QSB6.7
Αξιολογημένη ισχύς (kW):
178
Επισημαίνω:

large ground surface leveling GR1603

,

Large Ground Surface Leveling Road Grader

Περιγραφή προϊόντων

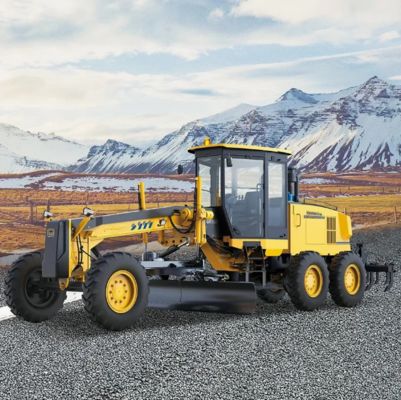

GR1603 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland.


Product Description

GR1603 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.


Basic Information

Model NO.

Gr1603

Certification

CE

Condition

New

Application

Railway, Mine, Farmland, Highway

Walking Mode

Wheeled

Type

Medium-sized Grader

Rated Power/Speed

125kw/2200rpm

Travelling Speed ,Forward

5, 8, 13, 18, 30, 47km/H

Travelling Speed ,Reverse

5, 13, 30km/H

Tractive Force(F=0.75)

73 Kn

Transport Package

Nude Packing

Specification

8420*2380*3150mm

Trademark

China Top 1 Brand

Origin

Xuzhou, Jiangsu, China

HS Code

84292090

Production Capacity

1000 Units/Month


Packaging & Delivery

Package Size

842.00cm * 238.00cm * 315.00cm

Package Gross Weight

13000.000kg


 Product Parameters

Item

GR1603

Basic parameters

Engine model

QSB5.9

Rated power/speed

125kW/2200rpm

Overall dimension (standard)

8420x2380x3150

Total weight (standard)

13000kg

Tire specification

13.00-24TG RP12

Ground clearance (front axle)

654 mm

Tread

2020mm

Space of front and rear axles

5780mm

Performance parameters

Forward velocity

5,8,13,18,30,47km/h

Reverse speed

5,13,30km/h

Tractive effort f=0.75

73 kN

Maximum gradeability

25%

Tire inflation pressure

260kPa

Working system pressure

19MPa

Transmission pressure

1.3-1.8Mpa



Minimum turning radius

6.6m

Scrape knife

Maximum lift height

410mm

Maximum cutting depth

515mm

Length & chord height

3660x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

18L

Transmission

26L

Balancing box

46L

Drive axle

28L


GR1603 For Large Ground Surface Leveling 0

 GR1603 For Large Ground Surface Leveling 1


Packaging and shipping

1. Containers are the cheapest and fastest

2. Bulk carriers are better for large construction equipment

3. Flat rack is better for large construction equipment and does not need to be disassembled

4.RoRo ships are fast and good for all kinds of machines

You can choose any transportation according to your needs

5. FOB, CRF and CIF are all acceptable.

We can ship the machine in bulk as a whole, or we can load it in a container and disassemble it on some parts of the machine, or we can ship it on a flat rack. We can choose the way according to your requirements.

Packaging details: Packaging will be as per customer requirements

Delivery time: 2 working days

Experienced international trade team provides the best full set of services



our service

1) Original parts and good working condition;

2) Low working hours and high work efficiency;

3) Strong work motivation and good stability;

4) Complete accessories and no oil leakage;

5) Competitive price and good skills;

6) Good after-sales service

We hope you can give us the opportunity to negotiate with you by email or phone, or come to Shanghai face to face, we are honored to contact you and serve you, and we promise to provide you with the best prices and services:

1) Book a hotel for you

2) Pick you up at the airport

3) Freely translate for you and guide you when you are free

4) 6 months to 1 year product and after-sales service warranty



 GR1603 For Large Ground Surface Leveling 2
GR1603 For Large Ground Surface Leveling 3
GR1603 For Large Ground Surface Leveling 4
GR1603 For Large Ground Surface Leveling 5


1. How to guarantee the condition and lifetime of the machine ?
A: We choose good condtion and less hour used machines. We are available for third part certificate of all of the machines.
And they are all available for your inspection in its place.

2. How to have after sale service from us ?
A: We have old suppliers in China, used or new parts are available for us to get, with reasonable price and in short time.

3. How can customers make visit and checking in China ?
A: We arrange everything ready for your jouney in China, welcome your happy visit!~
